Model No.: HNKM60803
The file is encrypted. Please fill in the following information to continue accessing it

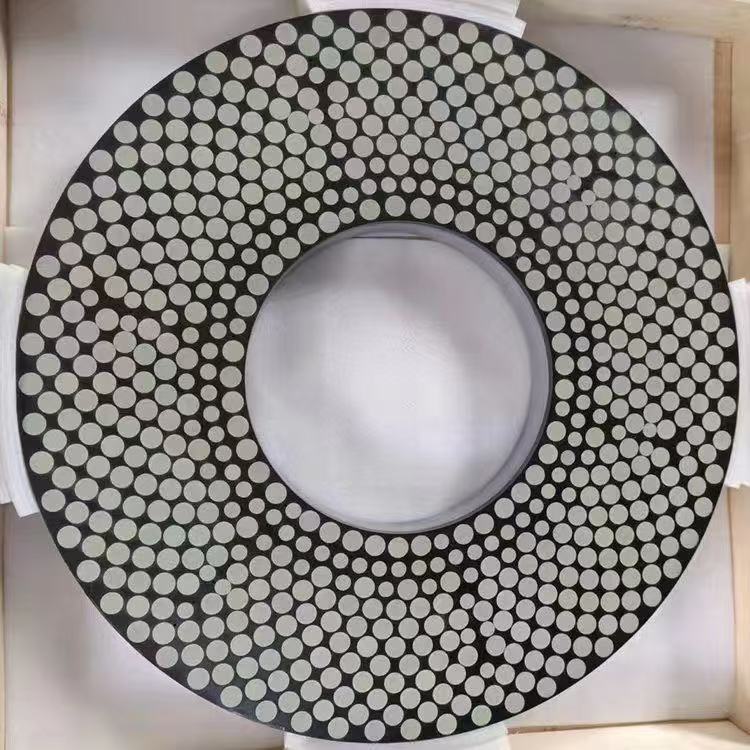

Double-Sided Grinding Disc / Lapping Plate (Diamond / CBN – for Flat Workpieces)
| Parameter | Value |
|---|---|
| Product Type | Double-sided grinding disc / lapping plate |
| Abrasive Type | Diamond or CBN (customer specified) |
| Bond Type | Resin, metal, or electroplated (customer specified) |
| Application | Double-sided grinding, lapping, and surface finishing of flat workpieces |
| Target Materials | Stainless steel, tungsten carbide, ceramics, bearing steel, hard alloys |
This double-sided grinding disc (lapping plate) is specifically designed for high-precision double-sided grinding and lapping of flat workpieces – delivering flatness, parallelism, and surface finish on both sides simultaneously.
Typical applications include:
✅ Stainless steel components – flat grinding and surface finishing
✅ Tungsten carbide parts – precision lapping and grinding
✅ Ceramic bearings and components – flat surface preparation
✅ Bearing steel rings – double-sided grinding
✅ Hard alloy parts – flat grinding and finishing
| Feature | Benefit |
|---|---|
| Double-sided design | Grinds both sides simultaneously – halves processing time |
| Precision flatness | Produces accurate flatness and parallelism |
| Diamond or CBN abrasive | Suitable for hard and tough materials |
| Customizable | Size, grit, and bond type to your specification |
| High productivity | Efficient material removal on flat parts |
| Benefit | Explanation |
|---|---|
| Saves time | Both sides ground in one operation |
| Ensures parallelism | Both sides are parallel to each other |
| Reduces handling | Less fixturing and flipping |
| Consistent results | Uniform material removal on both sides |
| Material | Application | Grinding Requirement |
|---|---|---|
| Stainless steel | Flat grinding, surface finishing | Diamond or CBN |
| Tungsten carbide | Precision lapping, flat grinding | Diamond required |
| Ceramic bearings | Surface preparation, flat grinding | Diamond required |
| Bearing steel | Double-sided grinding | CBN recommended |
| Hard alloys | Flat surface finishing | Diamond or CBN |
| Parameter | Options |
|---|---|
| Abrasive type | Diamond / CBN |
| Bond type | Resin / Metal / Electroplated |
| Grit size | #60 – #1200 |
| Disc diameter | Custom |
| Application | Grinding / Lapping / Polishing |
