Model No.: HNKM60716
The file is encrypted. Please fill in the following information to continue accessing it

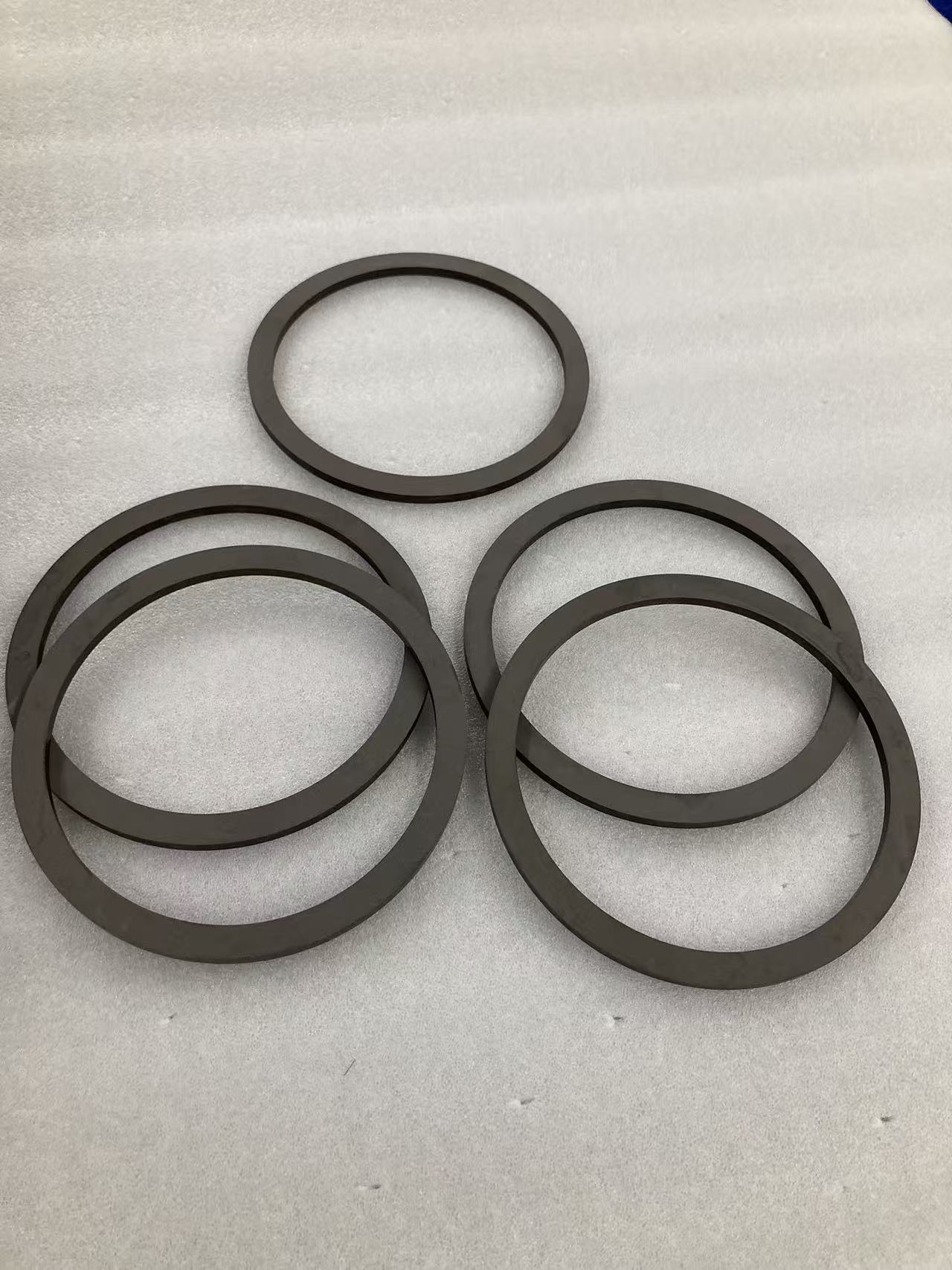

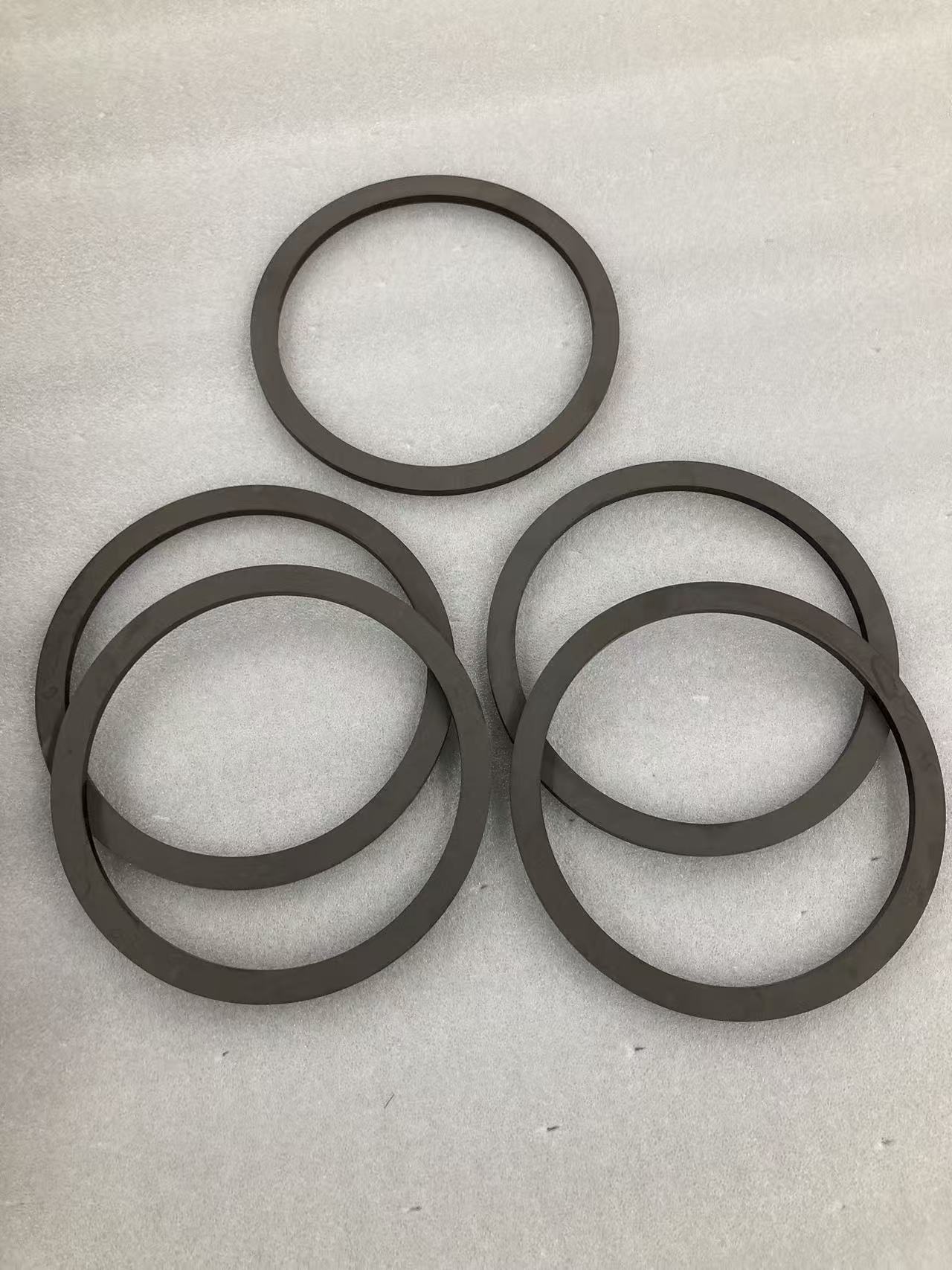

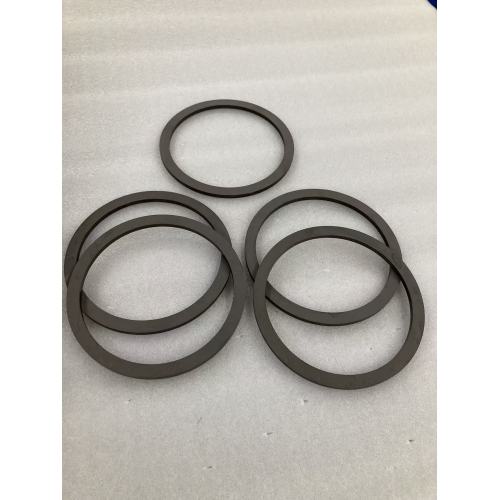

Resin Bond Diamond Grinding Ring / Segment (Working Layer Only)
| Parameter | Value |
|---|---|
| Product Type | Diamond grinding ring / segment (working layer only) |
| Abrasive Type | Resin bond diamond |
| Configuration | Diamond working layer only – no aluminum backing |
| Grit Range | Various – customer specified |
| Application | Customer bonds the ring onto their own aluminum wheel body |
| Target Materials | Carbide, ceramics, glass, stone, composites, hard metals |
This resin bond diamond grinding ring is a diamond working layer only – a precision-formed ring of resin-bonded diamond abrasive without an aluminum backing or steel core.
Designed for customers who manufacture their own wheel bodies:
The diamond ring is delivered to the customer, who then bonds it onto their own aluminum wheel base using adhesives or mechanical retention methods.
| Benefit | Explanation |
|---|---|
| Cost-effective | Customer reuses their own aluminum wheel bodies – only replace the diamond working layer |
| Customizable | Available in various grits, sizes, and profiles |
| Flexible | Customer controls the bonding process and wheel design |
| Efficient | Quick replacement of worn working layers without replacing the entire wheel |
✅ Grinding tungsten carbide tools
✅ Surface grinding ceramics and glass
✅ Precision grinding of hard metals
✅ Diamond wheel manufacturing and repair
✅ Custom wheel building
| Feature | Benefit |
|---|---|
| Resin bond diamond | Sharp, cool cutting, good finish |
| Working layer only | Customer bonds to their own aluminum body |
| Various grits | #60 – #400+ (customer specified) |
| Precision-formed | Consistent dimensions for reliable bonding |
| Cost-effective | Replace only the working layer – reuse the wheel body |
| Bond Type | Characteristics | Best For |
|---|---|---|
| Resin bond | Sharp, cool cutting, self-sharpening | General grinding, finishing |
| Metal bond | Long life, runs hotter | Production grinding |
| Ceramic bond | Hard, good form-holding | Precision grinding |
| Electroplated | Single layer, short life | Occasional use |
| Step | Action |
|---|---|
| 1 | Prepare aluminum wheel body (flat, clean surface) |
| 2 | Apply adhesive or mechanical retention method |
| 3 | Position the diamond ring onto the wheel body |
| 4 | Cure / set the bond |
| 5 | Balance and true the completed wheel |
| Method | Description | Best For |
|---|---|---|
| Adhesive bonding | Epoxy or other adhesives | General use, lower temperatures |
| Mechanical retention | Clamping, screws, or press-fit | Heavy-duty applications |
| Thermal bonding | Heat-cured adhesives | Production applications |
| Adhesive Type | Suitability | Notes |
|---|---|---|
| Epoxy resin | ⭐⭐⭐⭐⭐ Excellent | High strength, good for most applications |
| Cyanoacrylate | ⭐⭐⭐ Moderate | Quick setting, lower strength |
| Polyurethane adhesive | ⭐⭐⭐⭐ Good | Flexible, good for vibration |
| Parameter | Value / Range |
|---|---|
| Product Type | Diamond grinding ring / segment |
| Abrasive | Resin bond diamond |
| Grit range | #60 – #400+ (customer specified) |
| Outer Diameter | Custom – to customer specification |
| Inner Diameter | Custom – to customer specification |
| Thickness | Custom – to customer specification |
| Height / Width | Custom – to customer specification |
| Application | Customer bonds to aluminum wheel body |
| Application | Recommended Grit |
|---|---|
| Rough grinding / stock removal | #60-100 |
| General grinding | #120-200 |
| Finishing | #240-400 |
| Polishing | #400+ |
| Industry | Application | Why This Product |
|---|---|---|
| Carbide tool manufacturing | Grinding tungsten carbide tools | Reusable wheel bodies |
| Glass processing | Grinding and edging glass | Cost-effective replacement |
| Ceramic manufacturing | Grinding ceramic components | Consistent performance |
| Stone fabrication | Grinding Stone and granite | Custom wheel designs |
| General machining | Surface grinding hard materials | Flexible and economical |
| Material | Suitability |
|---|---|
| Tungsten carbide | ⭐⭐⭐⭐⭐ Excellent |
| Ceramics | ⭐⭐⭐⭐⭐ Excellent |
| Glass | ⭐⭐⭐⭐⭐ Excellent |
| Stone (granite, marble) | ⭐⭐⭐⭐⭐ Excellent |
| Hardened steel | ⭐⭐⭐ Good (CBN better for steel) |
| Composites | ⭐⭐⭐⭐ Good |
| Information | Required |
|---|---|
| Outer Diameter | Yes |
| Inner Diameter | Yes |
| Thickness | Yes |
| Height / Width | Yes |
| Grit size | Yes |
| Quantity | Yes |
| Application details | Recommended |
| Parameter | Options |
|---|---|
| Outer Diameter | Any size |
| Inner Diameter | Any size |
| Thickness | Any size |
| Grit | #60 – #400+ |
| Profile | Flat, radius, or custom |
| Quantity | Any quantity |
| Advantage | Explanation |
|---|---|
| Reuse wheel bodies | Customers keep their aluminum bodies – only replace the diamond ring |
| Lower cost | Working layer only – less expensive than a complete wheel |
| Flexible bonding | Customer chooses the bonding method that works best |
| Custom sizes | Made to your exact specifications |
| Consistent quality | Precision-formed diamond rings |
| Quick replacement | Fast turnaround on replacement rings |
