125mm Resin Bond Diamond Grinding Wheel (Aluminum + Bakelite Body, Serrated / Segmented Rim)
| Parameter | Value |
|---|---|
| Outer Diameter (OD) | 125 mm |
| Body Material | Aluminum + Bakelite (hybrid) |
| Abrasive Type | Resin bond diamond |
| Rim Design | Serrated / segmented (slotted / toothed edge) |
| Application | Sharpening, edge profiling, grinding |
| Target Materials | Carbide tools, HSS, hard metals, ceramics, glass, stone |

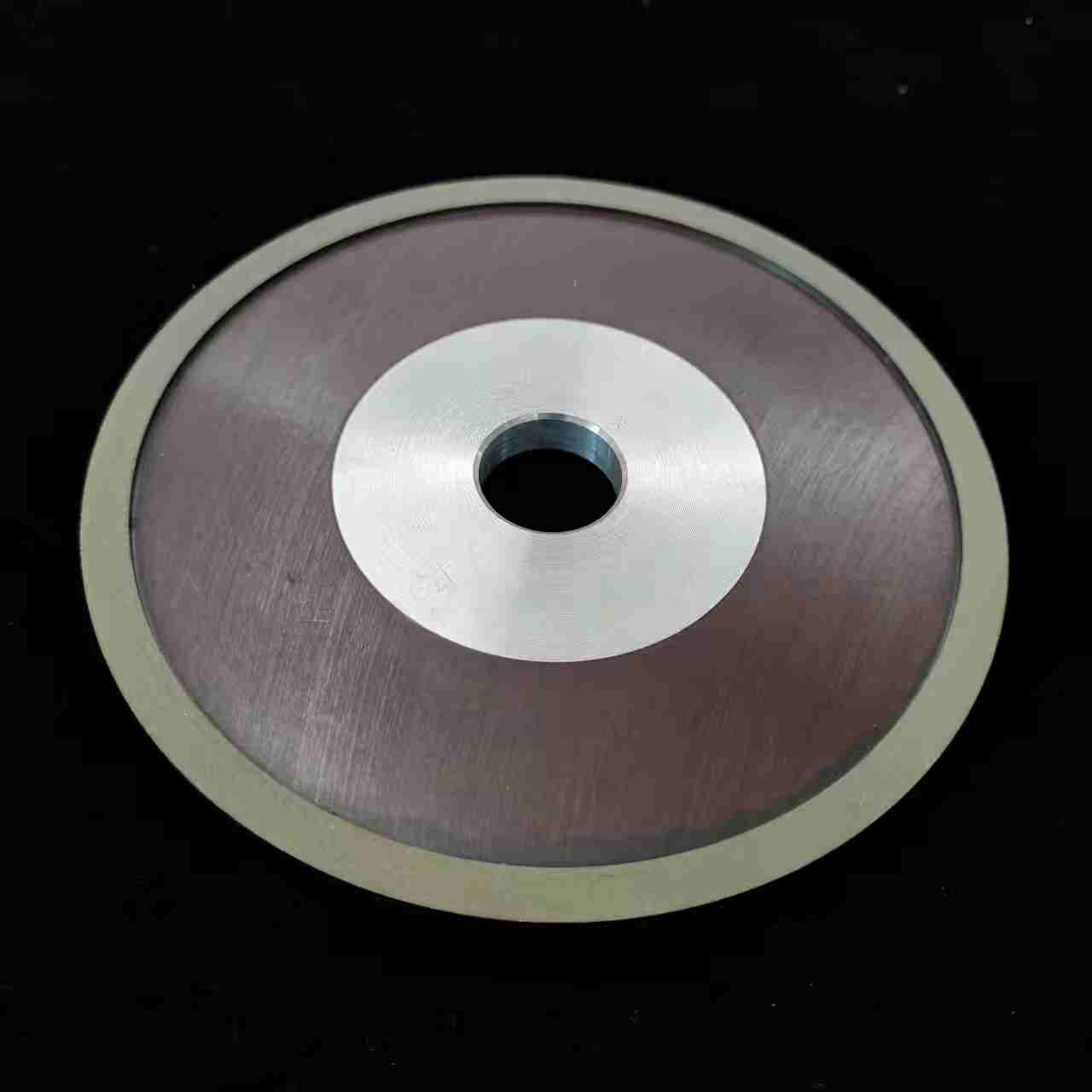

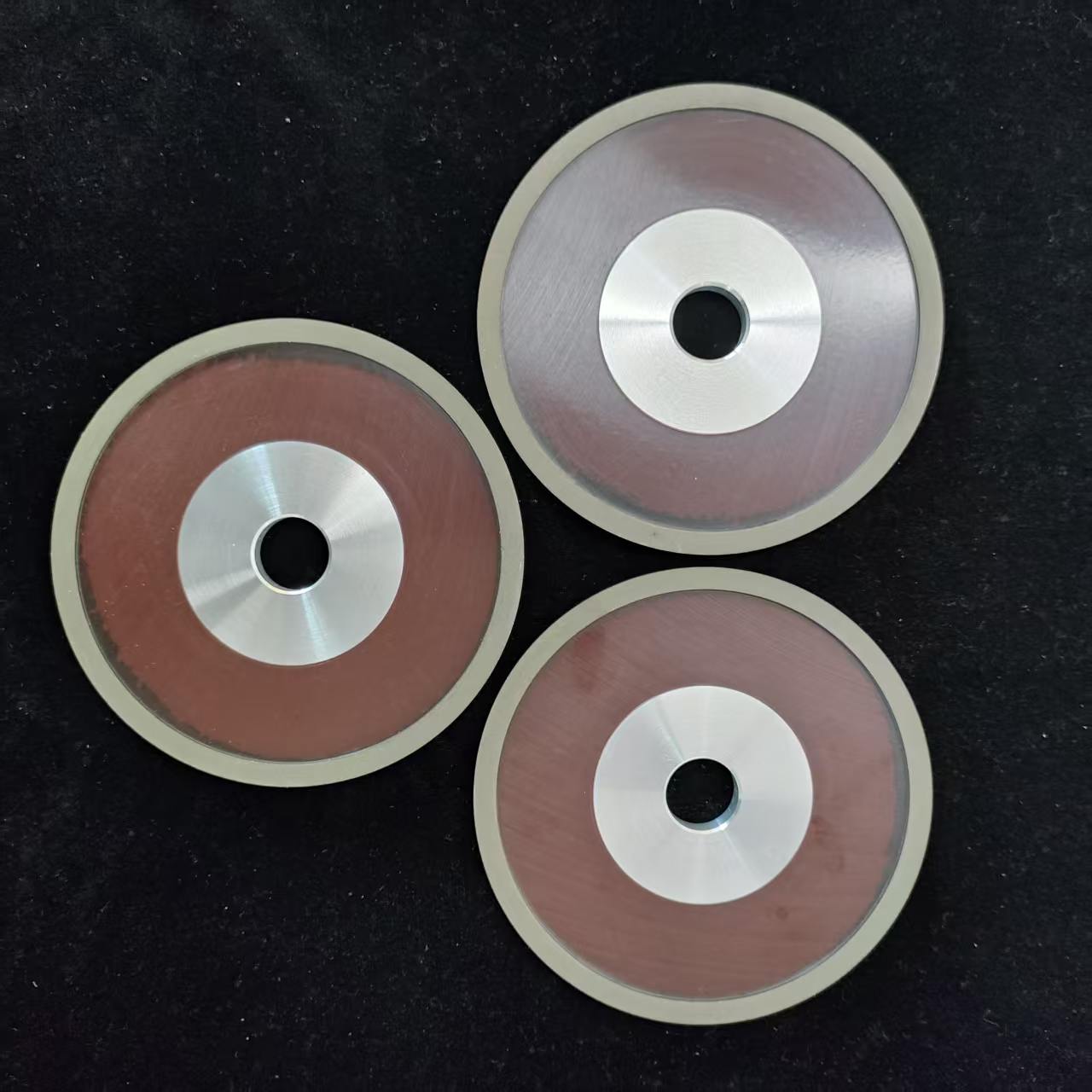

This 125mm resin bond diamond grinding wheel features a unique aluminum and bakelite hybrid body with a serrated / segmented rim – specifically designed for sharpening, edge profiling, and aggressive grinding of hard materials.
The serrated rim design provides:
Enhanced chip clearance – material debris falls away
Cooler grinding – reduces heat buildup
Faster cutting action – interrupted cutting surface
Reduced loading – prevents clogging
The aluminum + bakelite body offers:
Lightweight construction – easy handling
Good vibration damping – smoother operation
Excellent strength and durability
Corrosion resistance
Typical applications include:
✅ Sharpening carbide tipped saw blades
✅ Edge profiling and grinding
✅ Tool sharpening and reconditioning
✅ Grinding ceramics, glass, and stone
✅ Surface preparation and finishing
| Feature | Benefit |
|---|---|
| Serrated / segmented rim | Chip clearance, cool grinding, fast cutting |
| Aluminum + bakelite body | Lightweight, strong, vibration damping |
| Resin bond diamond | Sharp, self-sharpening, good finish |
| 125mm diameter | Fits standard angle grinders and tool grinders |
| Versatile | Works on carbide, HSS, ceramics, glass, stone |
| Bond Type | Characteristics | Best For |
|---|---|---|
| Resin bond | Sharp, cool cutting, self-sharpening, good finish | Sharpening, finishing, general grinding |
| Metal bond | Long life, runs hotter | Production grinding |
| Ceramic bond | Hard, good form-holding | Precision grinding |
| Electroplated | Single layer, short life | Occasional use |
| Feature | Benefit |
|---|---|
| Interrupted cutting | Faster material removal |
| Chip clearance | Debris falls away – no loading |
| Cooler operation | Less heat – prevents damage |
| Self-cleaning | Grooves prevent clogging |
| Material | Application | Benefit |
|---|---|---|
| Carbide tools | Sharpening, edge preparation | Clean, sharp edges |
| HSS | Tool sharpening | Efficient material removal |
| Ceramics | Edge grinding, surface prep | Cool grinding – no chipping |
| Glass | Edge finishing, shaping | Clean, smooth edges |
| Stone | Profiling, surface grinding | Aggressive cutting |
| Step | Action |
|---|---|
| 1 | Mount wheel securely on grinder spindle |
| 2 | Set speed: 8,000 – 12,000 RPM (for 125mm OD) |
| 3 | Apply light to moderate pressure |
| 4 | Use coolant for extended grinding |
| 5 | Dress as needed with dressing stick |
| Operation | Recommended Grit |
|---|---|
| Rough grinding / sharpening | #80-120 |
| General sharpening | #150-240 |
| Finishing / edge profiling | #320-400 |
| Problem | Likely Cause | Solution |
|---|---|---|
| Slow cutting | Wheel glazed or worn | Dress or replace wheel |
| Excessive heat | No coolant or too much pressure | Add coolant; reduce pressure |
| Poor finish | Grit too coarse or wheel dull | Use finer grit; dress wheel |
| Vibration | Wheel unbalanced or loose | Check mounting; balance wheel |
| Benefit | Explanation |
|---|---|
| Lightweight | Easier handling, less operator fatigue |
| Vibration damping | Smoother operation, better finish |
| Corrosion resistant | Long-lasting body |
| Strong | Durable and reliable |
