Model No.: HNKM60731
The file is encrypted. Please fill in the following information to continue accessing it
| Parameter | Value |
|---|---|
| Abrasive Type | Electroplated diamond (single-layer, high exposure) |
| Profile | Bevel / chamfer / angled face |
| Application | Bevel grinding, edge chamfering, corner rounding |
| Target Materials | Ceramics, glass, magnetic materials, ferrite, hard stones |

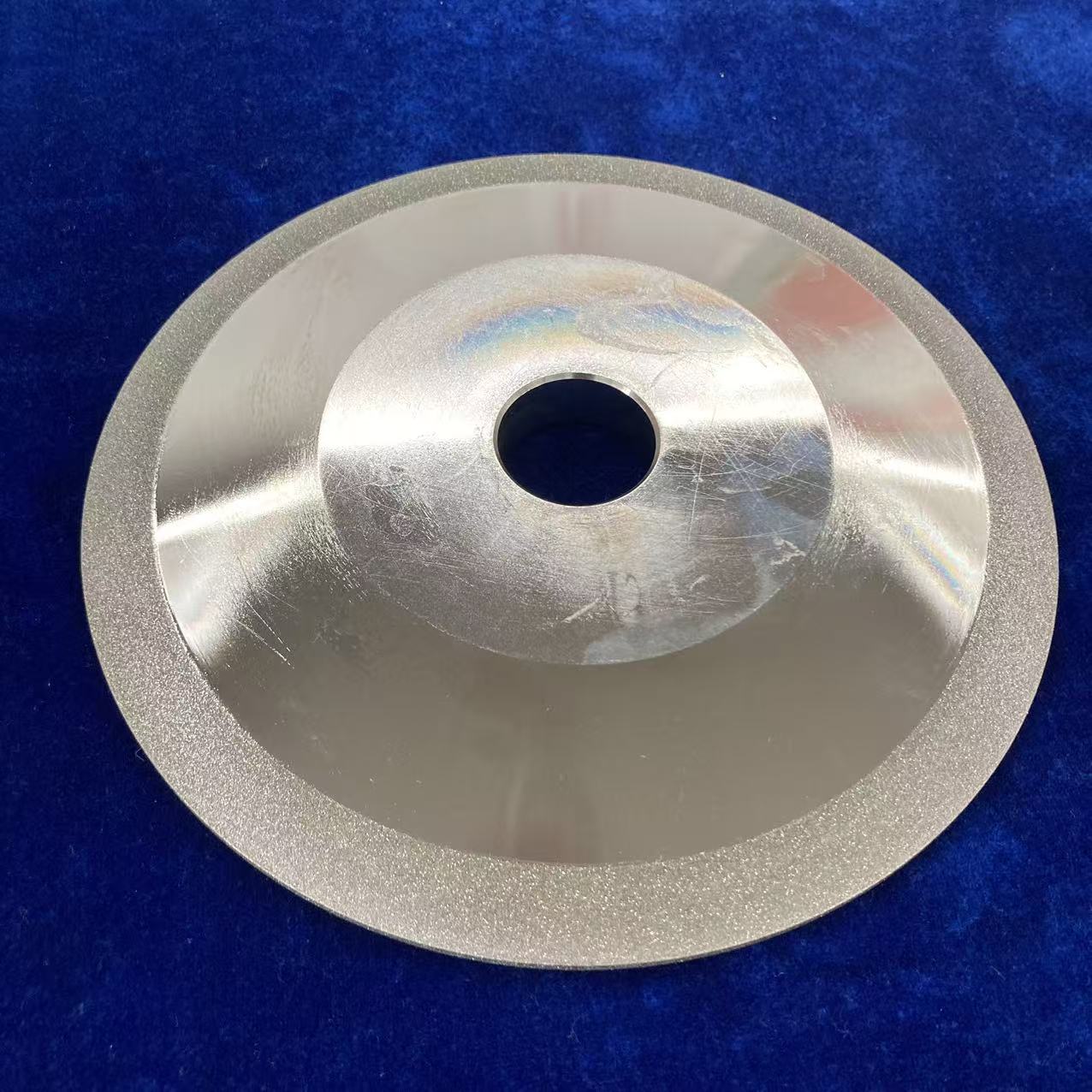

This electroplated diamond bevel / edge grinding wheel is specifically designed for chamfering, edge finishing, and bevel grinding of hard, brittle materials – including ceramics, glass, magnetic materials, ferrites, and hard stones.
The angled bevel profile allows for precise, consistent chamfering in a single pass – producing smooth, chip-free edges on fragile materials.
The electroplated diamond abrasive provides:
Extremely sharp, aggressive cutting action
High diamond exposure – efficient material removal
Cool operation – minimal heat generation
Consistent performance – long service life
Typical applications include:
✅ Chamfering ceramic tiles and components
✅ Edge finishing on glass sheets and mirrors
✅ Bevel grinding of magnetic materials (ferrites, magnets)
✅ Corner rounding on hard stones and composites
✅ Deburring and edge preparation
| Feature | Benefit |
|---|---|
| Bevel / chamfer profile | Precision chamfering in one pass – consistent angles |
| Electroplated diamond | Sharp, aggressive, long life, cool cutting |
| For hard brittle materials | Clean edges – no chipping or cracking |
| Customizable angles | Available in various bevel angles |
| Cool operation | Prevents thermal damage to heat-sensitive materials |
| Material | Hardness | Abrasive Required |
|---|---|---|
| Ceramics | Mohs 7-9 | Diamond |
| Glass | Mohs 5-7 | Diamond recommended |
| Magnetic materials (ferrite) | High | Diamond |
| Hard stones | Mohs 6-9 | Diamond |
| Angle | Best For |
|---|---|
| 15° | Fine edge, light chamfer |
| 30° | Standard chamfer, most common |
| 45° | Heavy chamfer, edge preparation |
| Custom | Customer-specified angle |
| Industry | Application | Benefit |
|---|---|---|
| Ceramic manufacturing | Chamfering tiles and components | Clean, chip-free edges |
| Glass processing | Edge finishing, beveling | Smooth, polished edges |
| Magnetic materials | Ferrite edge chamfering | Precise, consistent edges |
| Stone fabrication | Edge profiling, corner rounding | Smooth, uniform finish |
| Electronics | Substrate edge preparation | Precision chamfering |
| Step | Action |
|---|---|
| 1 | Mount the wheel on the grinder spindle |
| 2 | Set speed: 5,000 – 10,000 RPM (material dependent) |
| 3 | Position the bevel face against the workpiece edge |
| 4 | Apply light pressure – let diamond work |
| 5 | Use coolant for extended runs |
| Problem | Likely Cause | Solution |
|---|---|---|
| Chipping on edge | Too much pressure or speed too high | Reduce pressure; reduce speed |
| Slow chamfering | Wheel glazed or worn | Replace wheel |
| Inconsistent angle | Wheel not properly positioned | Check setup; dress wheel |
| Excessive heat | No coolant | Add coolant; reduce speed |
