Model No.: HNKM60505
The file is encrypted. Please fill in the following information to continue accessing it

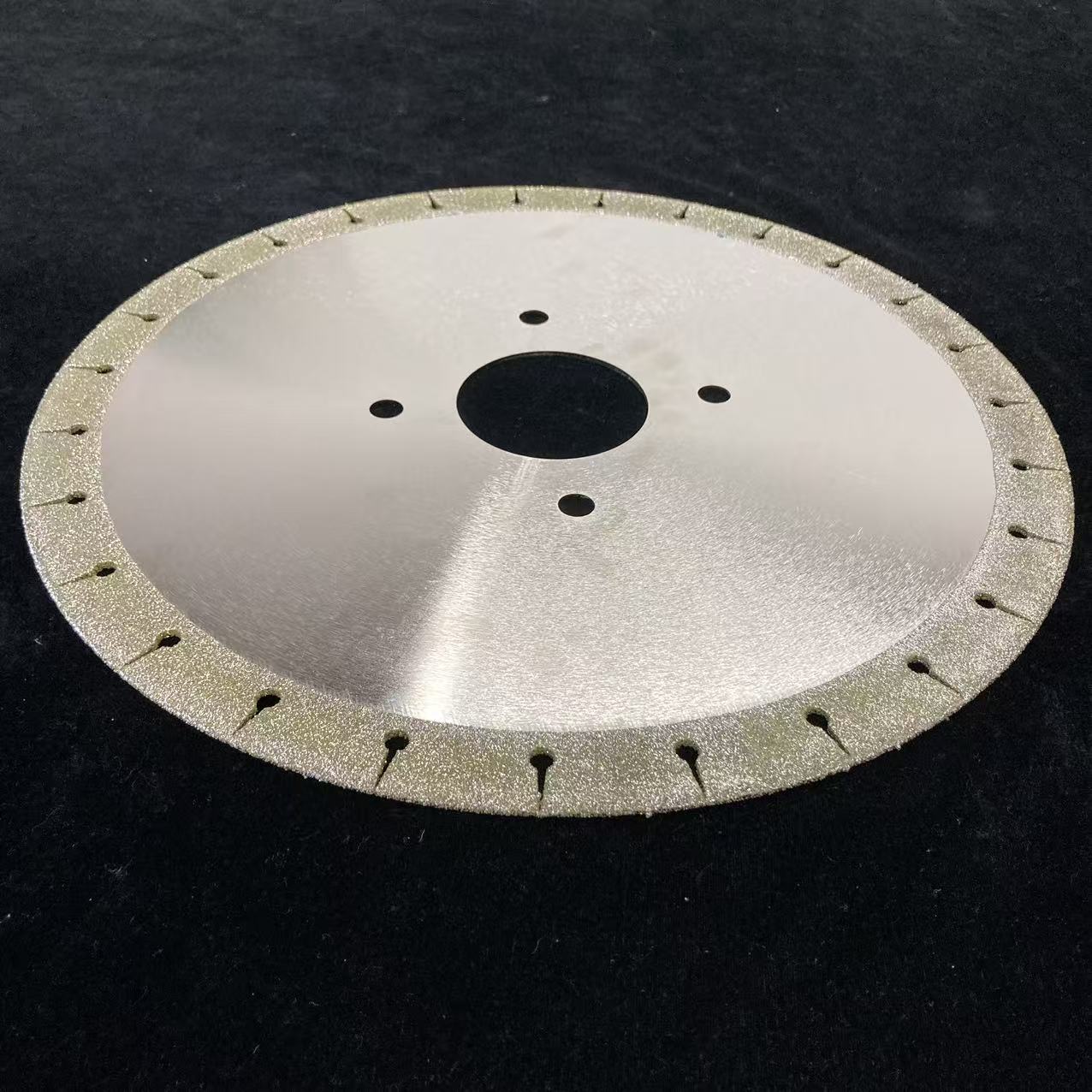

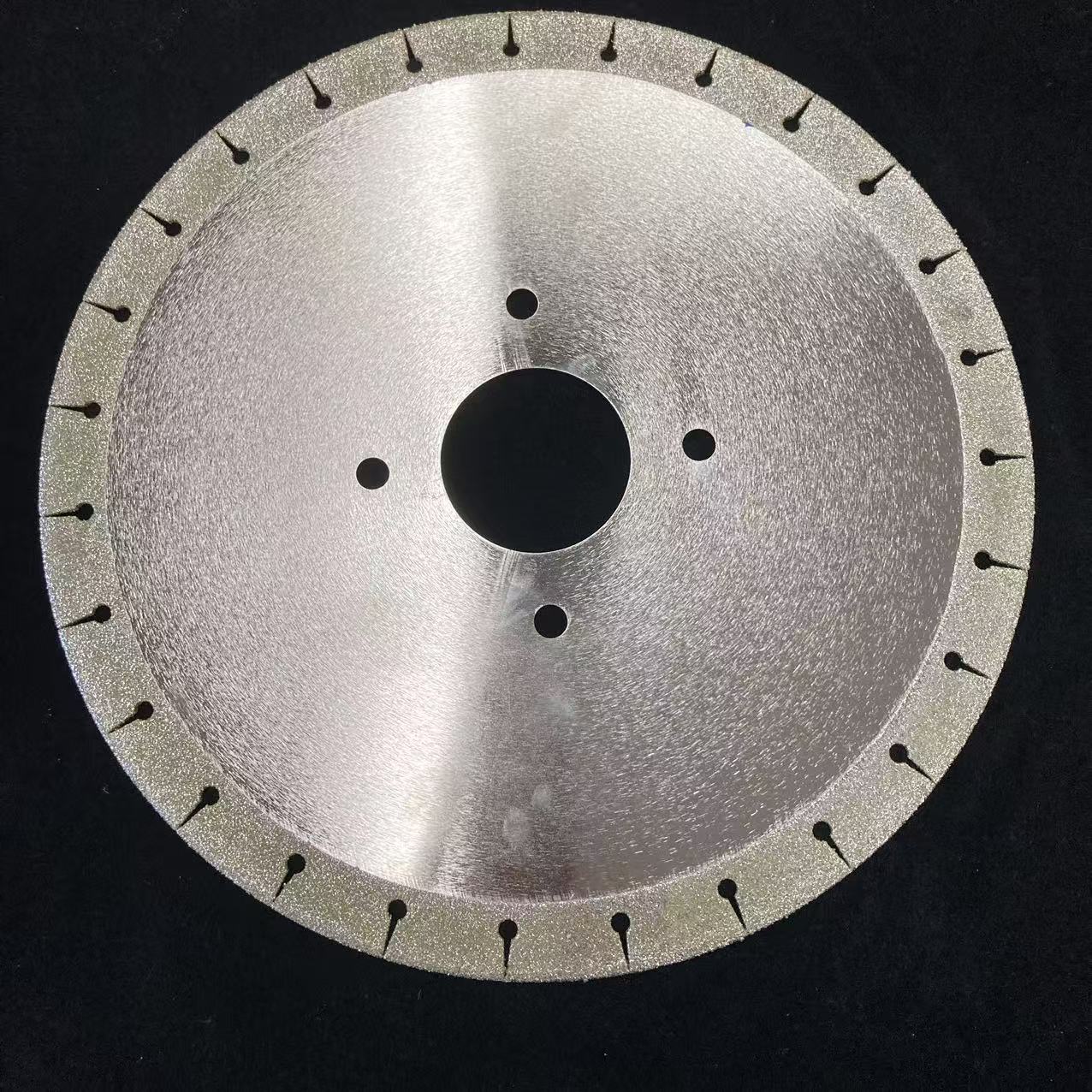

500mm Electroplated Diamond Cutting Blade (Type: Electroplated / Outer Diameter 500mm)
| Parameter | Value |
|---|---|
| Outer Diameter (OD) | 500 mm |
| Abrasive Type | Synthetic diamond (electroplated bond) |
| Grit Size | 30 / 35 mesh (coarse) |
| Application Material | Piezoelectric ceramic (PZT), hard & brittle ceramics |
| Mounting | Custom flange / arbor hole (to be confirmed per machine) |
This 500mm electroplated diamond cutting blade is specifically engineered for high-efficiency, precision slicing of piezoelectric ceramics (PZT) .

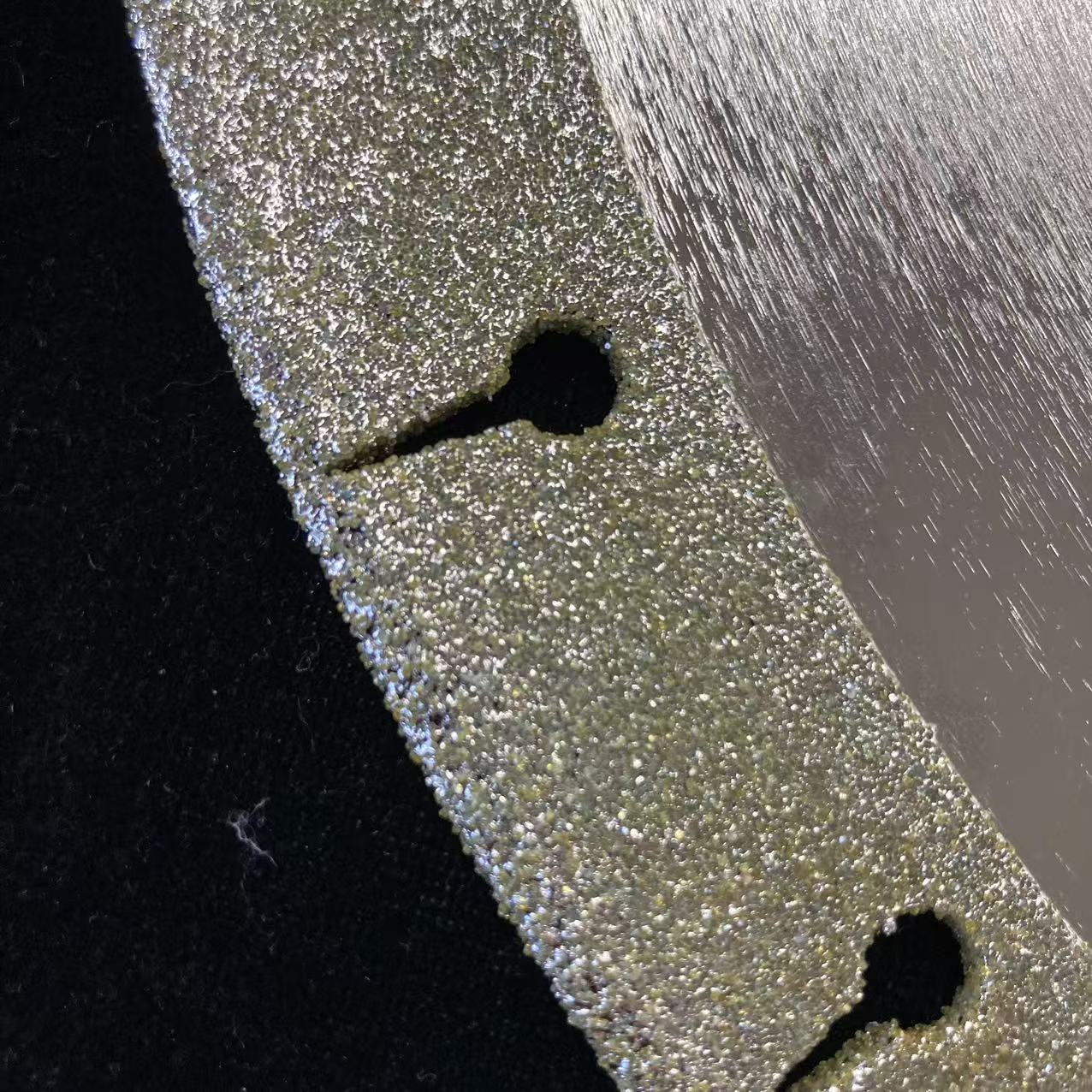

Piezoelectric ceramics are extremely hard, brittle, and wear-resistant – making them difficult to cut with conventional abrasive wheels. This blade solves that problem by using a single-layer, high-concentration electroplated diamond coating bonded firmly to a steel core.
The 30/35 grit provides:
✅ Aggressive cutting action for faster feed rates
✅ Reduced cutting heat generation
✅ Clean cut surfaces with minimal edge chipping when parameters are optimized
| Feature | Benefit for PZT Cutting |
|---|---|
| Thin diamond layer | Thin kerf = less material waste |
| High diamond exposure | Cuts through hard ceramic without glazing |
| No metal bond matrix | Reduced friction and heat |
| Sharp cutting edge | Lower cutting force, less crack risk |
| Uniform grit distribution | Smooth, consistent cut quality |
| Parameter | Recommendation |
|---|---|
| Cutting speed (Vs) | 30 – 40 m/s |
| Feed rate | Slow to moderate (material dependent) |
| Coolant | Water-based flood coolant required |
| Machine type | High-rigidity ceramic dicing / slicing saw |
⚠️ Important:
Piezoelectric ceramics are sensitive to thermal and mechanical shock.
Always use sufficient coolant flow to prevent cracking.
A coarse grit like 30/35 is preferred for thicker workpieces or high removal rate applications.
Dicing piezoelectric ceramic plates / blocks
Slicing PZT wafers for sensors, actuators, transducers
Cutting other hard & brittle ceramics (alumina, zirconia, ferrite)
Different grit sizes (e.g., 60/80 for finer cuts)
Custom arbor hole diameter
Special edge profiling (if required)
1 × 500mm Electroplated Diamond Cutting Blade (30/35 grit)
