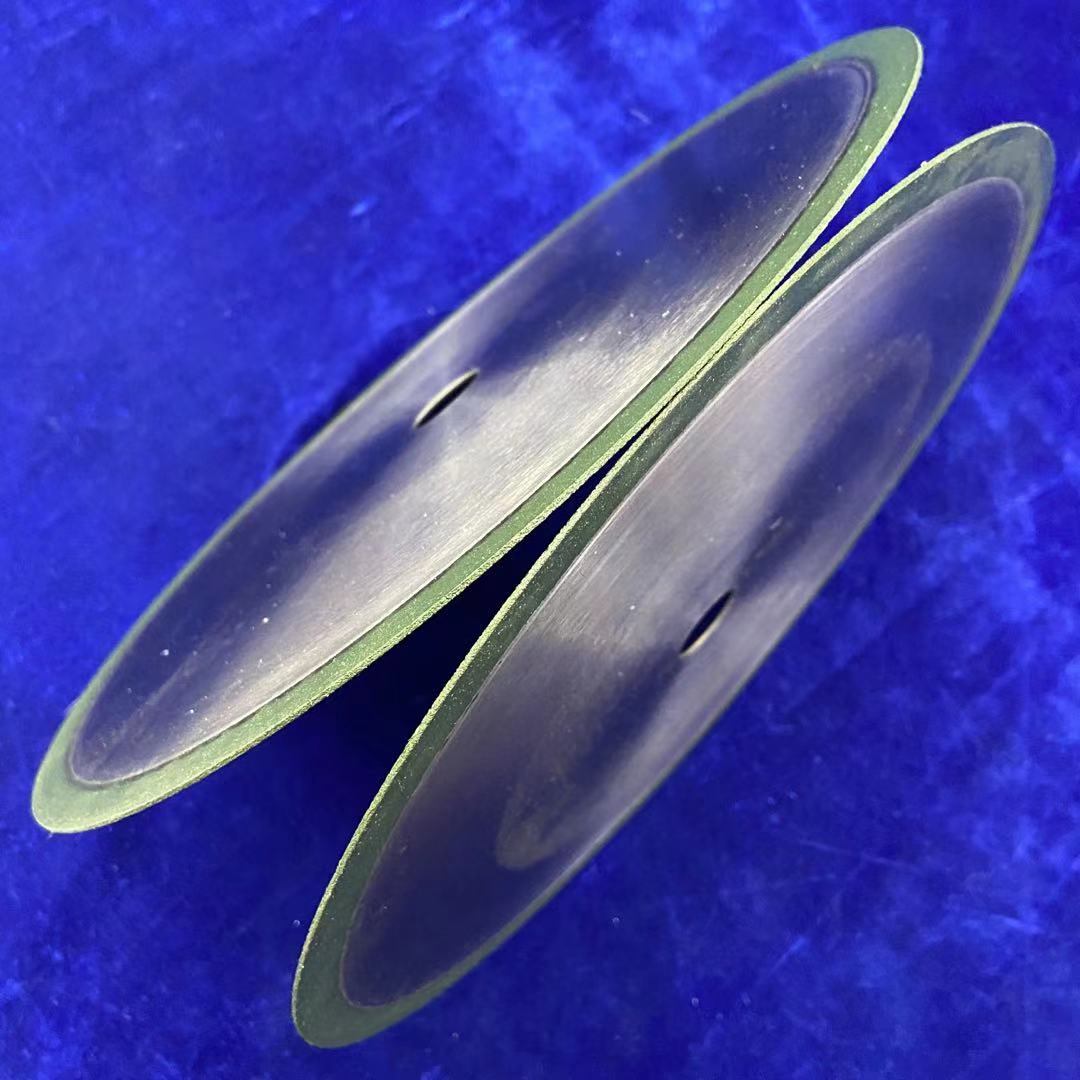

Industrial Glass Cutting Disc: 300mm x 2mm Resin Bond Diamond Wheel

Product Overview

Introducing our premium Resin Bond Super Thin Diamond Cutting Wheel, engineered specifically for high-precision cutting of hard and brittle materials. This wheel features a 300mm diameter with an ultra-thin 2mm kerf, designed to minimize material loss and deliver clean, chip-free cuts on glass and similar substrates.

Manufactured using a specialized resin bond matrix, this wheel offers a unique balance between a high concentration of sharp diamond grits and a "soft" bond. This ensures the wheel cuts fast while maintaining a "cool cutting" action, preventing thermal damage or micro-cracking on your workpieces. The precise 20mm arbor hole ensures a perfect fit for standard industrial cutting machines.

Key Features & Benefits

• Ultra-Thin Profile (2mm): Significantly reduces material wastage (kerf loss) when cutting expensive glass or ceramics.

• High-Precision Cutting: Achieves clean, straight cuts with minimal chipping on the edges, often eliminating the need for secondary edging.

• Resin Bond Technology: The bond is designed to wear at a controlled rate, constantly exposing fresh, sharp diamond particles for consistent cutting performance throughout the life of the wheel.

• Cold Cutting Action: The resin bond acts as a buffer, reducing friction and heat generation. This "cold cut" prevents heat cracks and maintains the structural integrity of the glass.

• High Diamond Concentration: Loaded with high-quality synthetic diamond grits for aggressive cutting action and long tool life.

Technical Specifications

• Wheel Diameter: 300 mm (12 inches)

• Thickness (Kerf): 2.0 mm

• Arbor Hole Diameter: 20 mm

• Bond Type: Resin (Phenolic)

• Abrasive Type: Synthetic Diamond

• Grit Size: Available in Fine or Medium (Select below) [Suggestion: Let customers choose 200# for fine finish or 400# for super finish]

• Max Operating Speed: [Insert RPM, e.g., 50 m/s or specific RPM]

• Concentration: High (100+)

Applications

This cutting wheel is specifically designed for dry or wet cutting applications on:

• Glass: Flat glass, soda-lime glass, borosilicate glass, laminated glass (with care), and glass tubing.

• Optical Materials: Quartz, fused silica.

• Ceramics: Technical ceramics, alumina tiles.

• Semiconductors: Silicon, germanium (pre-clean room use).

• Jade & Precious Stones

Why Choose Our Wheel?

Unlike metal bond wheels which can be too hard and glaze over, or Vitrified Wheels which are brittle, our Resin Bond formula provides the perfect "dashpot" effect—absorbing shock and vibration during the cut. This results in a smoother operation and a superior surface finish on the glass edge.
