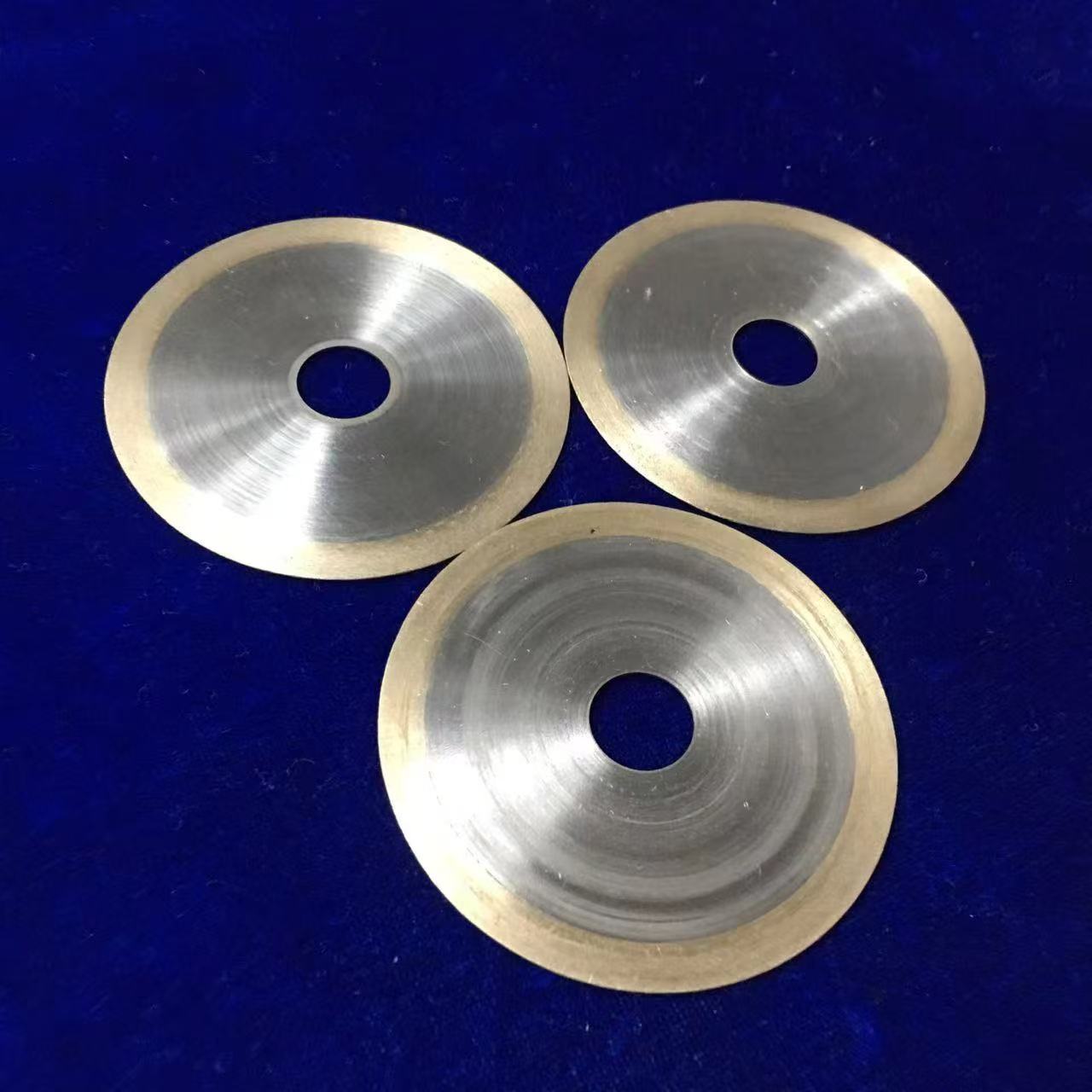

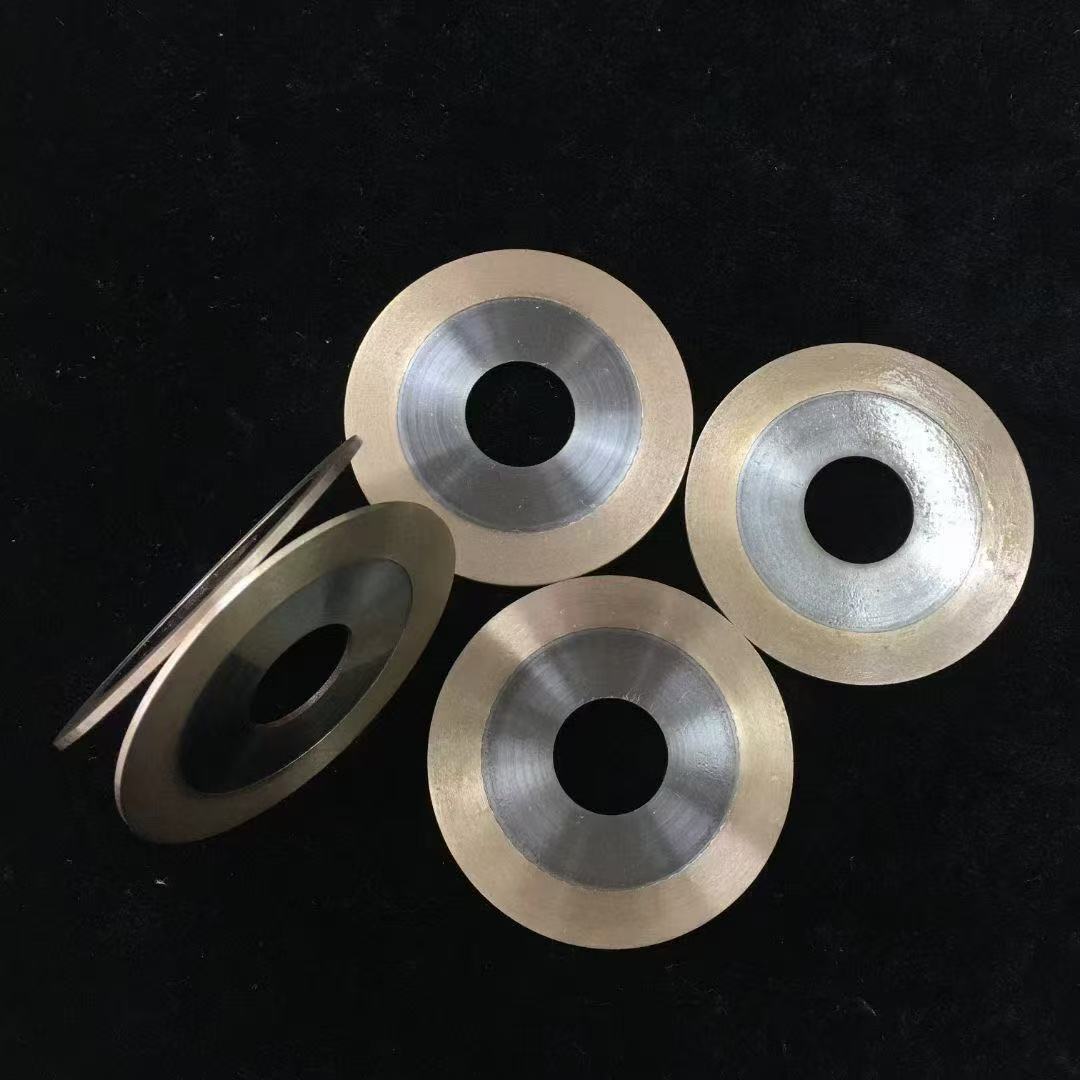

Bronze Bonded Diamond Ultra-Thin Cutting Blade, 0.3mm Thickness (Down to 0.2mm)

Product Description

Product Name:

Bronze Bonded Ultra-Thin Diamond / CBN Cutting Blades (Sintered / Metal Bond)

Key Specifications:

Product Description:

These bronze-bonded ultra-thin cutting blades are precision-engineered for high-accuracy dicing, slicing, and slotting of hard and difficult-to-cut materials.

Available in two abrasive types – Diamond and CBN – these blades combine the durability of sintered bronze bonding with ultra-thin kerf geometry to minimize material waste while maintaining cutting stability.

Part 1: Bronze Bonded Diamond Ultra-Thin Blade

For Hard & Brittle Materials

Key Features:

✅ Bronze Bond (Sintered) – Stronger than resin or electroplated bonds; provides excellent grain retention and longer blade life
✅ Ultra-Thin Profile (0.2-0.3mm) – Minimizes kerf loss (narrow cut width), maximizes material yield
✅ Diamond Abrasive – Cuts the hardest materials including ceramics, glass, and tungsten carbide
✅ Customizable Dimensions – Outer diameter, inner hole, thickness, and grit size available per customer requirements
✅ Precision Cutting – Ideal for dicing wafers, slicing rods, slotting precision components

Typical Applications:

• Dicing ceramic substrates and alumina wafers

• Cutting glass and quartz rods/tubes

• Slicing ferrite cores for electronics

• Cutting tungsten carbide and hard metals

• Semiconductor material dicing

• Optical glass precision cutting

Recommended Operating Parameters:

Part 2: Bronze Bonded CBN Ultra-Thin Blade

For Ferrous Metals & Hardened Steels

Key Features:

✅ CBN Abrasive – Chemically stable with ferrous materials; does not react with iron at high temperatures (unlike diamond)
✅ Bronze Bond – Strong grain retention, long blade life, maintains shape under heavy use
✅ Ultra-Thin Kerf – Reduces material waste when cutting expensive hardened steel components
✅ Customizable – Any dimension, thickness, or grit size available
✅ Precision Slitting – Ideal for cutting hardened steel rods, tubes, and precision components

Why CBN Instead of Diamond for Steel?

Typical Applications:

• Cutting hardened steel rods and bars (HRC 45-65)

• Slitting bearing steel components

• Dicing tool steel blanks

• Cutting cast iron parts

• Precision slotting in ferrous alloys

• Cutting high-speed steel (HSS)

Recommended Operating Parameters:

Part 3: Bronze Bond Technology – Why Choose Sintered Metal Bond?

Compared to other bonding methods, bronze (sintered metal) bond offers unique advantages for ultra-thin cutting blades.

Advantages of bronze bond for ultra-thin blades:

✅ High grain retention – Diamond/CBN grains are firmly held in the bronze matrix; grains do not pull out easily
✅ Long blade life – Suitable for production environments with high cutting volumes
✅ Maintains thickness – Bronze bond resists wear, keeping the kerf consistent throughout blade life
✅ Cooler cutting – Metal bond dissipates heat better than resin
✅ Can be re-dressed – When loaded, the blade can be dressed to expose fresh abrasive (unlike electroplated which cannot be dressed)

Customization Options

These blades are fully customizable to meet your specific application requirements.

Please provide the following for a custom quote:

• Outer Diameter (OD): _____ mm

• Inner Diameter (ID): _____ mm

• Thickness: _____ mm

• Abrasive Type: Diamond ☐ CBN ☐

• Material to be cut: ___________

• Grit size (if known): ___________

• Estimated quantity: ___________
